Sentinel Data
Types, Signatures & Preprocessing

Learning Objectives

By the end of this lesson you will be able to:

• Explain GDAL data types and choose the right type for a given value range
• Use scale and offset to store data compactly without loss of meaningful precision
• Navigate the Sentinel-2 SAFE format and import bands in R
• Convert raw Digital Numbers (DN) to surface reflectance values

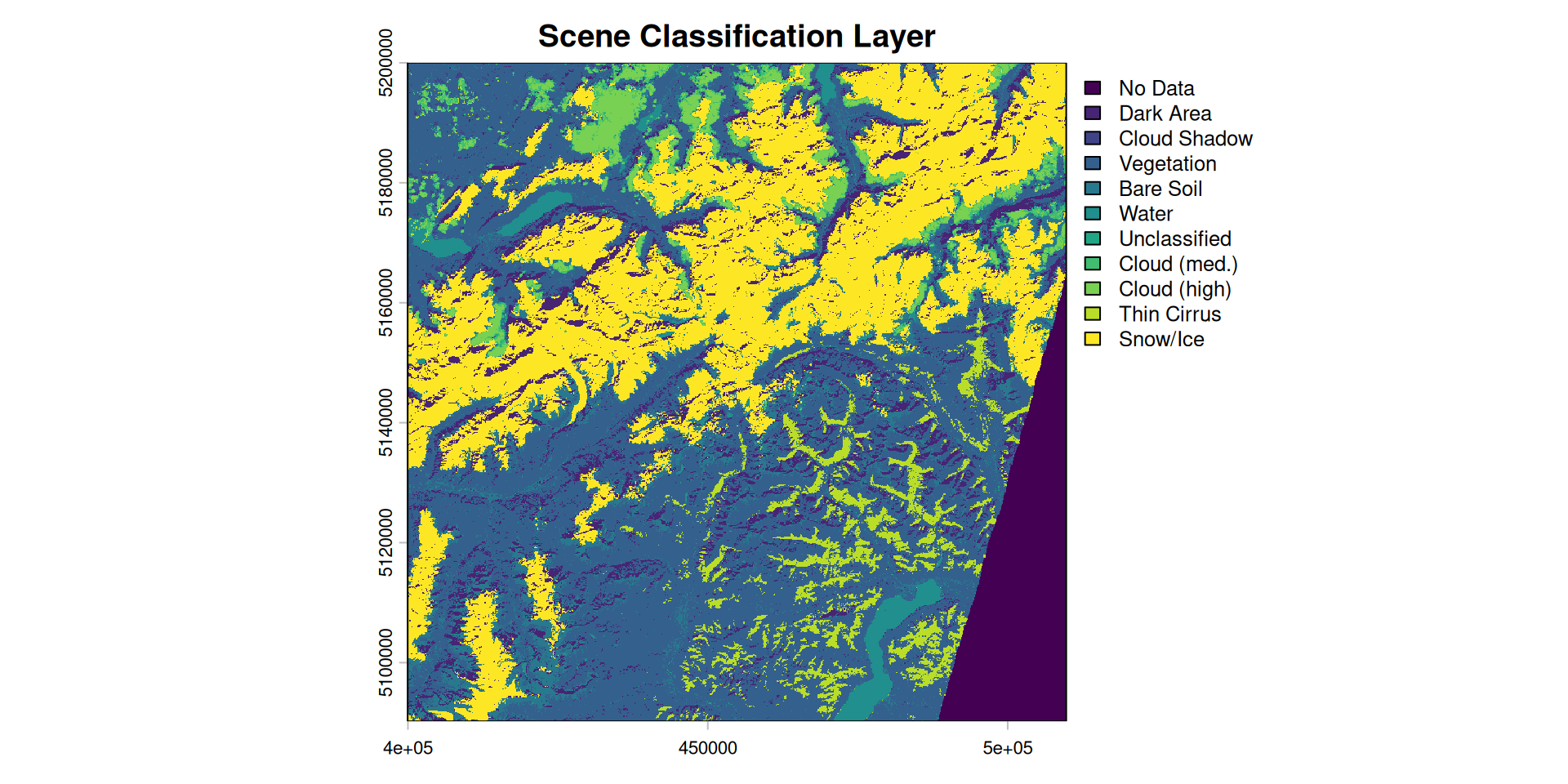

• Apply the SCL band to mask clouds and produce a cloud-free image
• Apply a data pipeline from download to analysis-ready raster

Data Types, scale and offset

Why this matters

• Storage space!
• Sentinel-2 bands are stored as raw integers (UInt16, values ~0–15000)
• The conversion to surface reflectance requires a scale and offset — documented in a separate XML file
• GDAL reads individual JP2 files, not the full product → the conversion is never applied automatically
• To work with S2 data correctly, we need to understand what scale and offset are and how to apply them

• ESA’s design assumes the full SAFE product is used with their toolchain (SNAP, Sen2Cor) — scale/offset lives at the product level (MTD_MSIL2A.xml), not the file level
• GDAL reads files, not products — so there is no mechanism for it to auto-apply the conversion
• This is the motivating problem for this entire section

Raster data types

• Raster data is always stored as numeric
• GDAL defines the supported types — shared by R, Python, QGIS
• In memory: R/Python types; on disk: GDAL types
• Choice of type affects file size and precision

Raster data types

Table 1: The possible ranges of different datatypes in gdal (source: Amatulli)

Data type	Minimum	Maximum	Size1	Factor
Byte	0	255	39M	1x
UInt16	0	65,535	78M	2x
Int16, CInt16	-32,768	32,767	78M	2x
UInt32	0	4,294,967,295	155M	~4x
Int32, CInt32	-2,147,483,648	2,147,483,647	155M	~4x
Float32, CFloat32	-3.4E38	3.4E38	155M	~4x
Float64, CFloat64	-1.79E308	1.79E308	309M	~8x

• If you store categorical data, use integer datatype and store the corespondence in the metadata
• Always be minimalistic about which datatype you need.
• Question if you have a continuous value from 0 to 1, which datatype do you use?
  • Not Float32! But Multiply by 100 and use Byte or by 1000 (if you need more precision) and use UInt16
• Question: if you are measuring temperature, and your values are floating point ranging is -20 to +40 degrees, what datatype are you going to use?
  • Not CFloat32!
  • Multiply by 100 and use CInt16
• Question: if you compute NDVI and have values in the range 0 - 1, what datatype do you use?
  • Not Float32, but not CInt16 either:
  • Transform the values to 0 - 255

1. Difference in file size using constant dataset (same values and resolution) and varying the datatype

Choosing a data type

• Naively: value range determines the datatype
• Better: transform values to fit a smaller type
• Example: NDVI ∈ [−1, 1] → rescale to [0, 255] → store as Byte

Rescaling / Transforming values

Min-max normalization maps any range \([\min(x), \max(x)]\) to a target range \([a, b]\):

\[x' = a + \frac{(x-\min(x))\times(b - a)}{\max(x)-\min(x)}\]

For NDVI ∈ [−1, 1] rescaled to [0, 255]:

• \(x\) — measured value, \(x'\) — stored value
• \(a = 0\), \(b = 255\) — target range
• \(\min(x) = -1\), \(\max(x) = 1\)

• We can use these values and simplify the formula as follows:

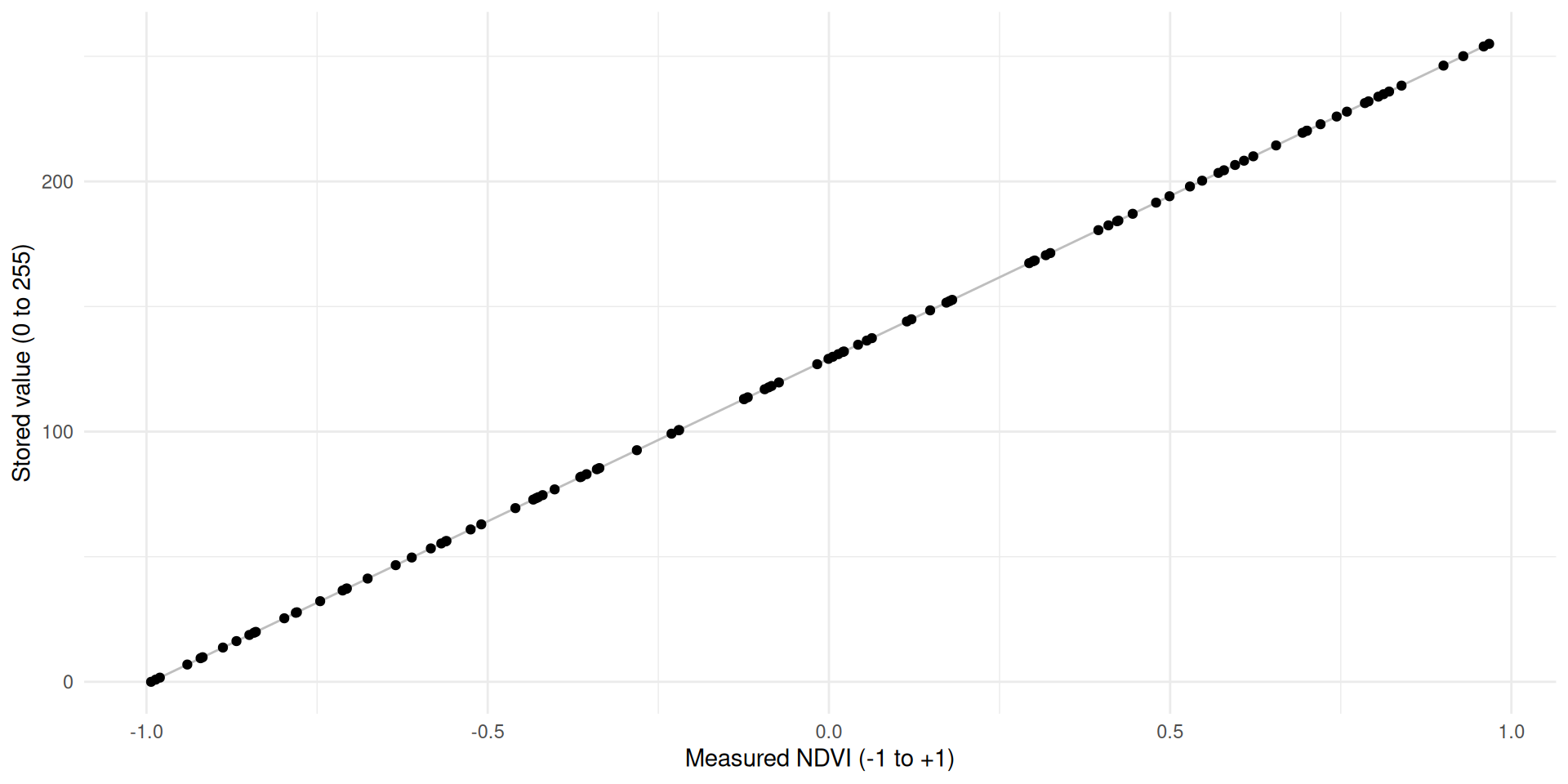

\[\begin{align} x' &= 0 + \frac{(x+1)\times 255}{2} \\ x' &= \frac{255x+255}{2} \\ x' &= 127.5x+127.5 \\ \end{align}\]

• Formula: \(x' = 127.5x + 127.5\)
• Example: NDVI \(0.2\) → stored as \(153\)
• Two parameters describe the rescaling:
  • \(x' = x \times \underbrace{127.5}_{\text{scale}} + \underbrace{127.5}_{\text{offset}}\)

Precision (and lack thereof)

• Only 255 distinct values → limited precision
• Precision = \(\frac{1}{\text{scale}} = \frac{1}{127.5} \approx 0.008\)
• Every stored NDVI is rounded to the nearest \(0.008\)
• Is this enough? → depends on the use case

R Implementation for vectors

• scale_minmax() applies the formula to a numeric vector:

scale_minmax <- function(
    x,
    a = 0,          # the minimum value of the new range (default 0)
    b = 255         # the maximum value of the new range (default 255)
    ){
  min_x = min(x)
  max_x = max(x)
  a + (x - min_x) * (b - a) / (max_x - min_x)
}

ndvi_measured <- runif(10, -1, 1)

ndvi_stored <- scale_minmax(ndvi_measured)

Restoring the original values

• A colleague receiving your file needs to know how to get back the original values
• Invert the transformation using scale and offset: \[x = \frac{x' - 127.5}{127.5}\]

R implementation for rasters

• GDAL supports scale/offset natively (pass directly to writeRaster())
• Values are stored in file metadata and recognized during import
• Formulas to derive them from the value range:

\[\begin{align} \text{scale} &= \frac{b - a}{\max(x)-\min(x)} \\ \\ \text{offset} &= \frac{a \times \max(x) - b \times \min(x)}{\max(x)-\min(x)} \end{align}\]

Note:

• \(a\) and \(b\) refer to the target range
• min and max could either be the theoretical or practical extremes: What are pros / cons of using either?

scoff_params <- function(x, a = 0, b = 255, min_x = min(x), max_x = max(x)) {
  scale  <- (b - a) / (max_x - min_x)
  offset <- (a * max_x - b * min_x) / (max_x - min_x)
  c(scale = scale, offset = offset)
}

scoff_params(ndvi_measured)

 scale offset
 127.5  127.5

scoff_params(ndvi_measured, min_x = -1, max_x = 1)

 scale offset
 127.5  127.5

R implementation for rasters

• scoff_params() works for vectors, but needs two adjustments for rasters:
  1. min()/max() return per-cell values → use minmax() for global min/max
  2. writeRaster() divides by scale and subtracts offset → both must be inverted

scoff_params <- function(x, a = 0, b = 255) {
  stopifnot(nlyr(x) == 1)
  mm     <- minmax(x)[, 1]
  scale  <- (b - a) / (mm[2] - mm[1])
  offset <- (a * mm[2] - b * mm[1]) / (mm[2] - mm[1])
  c(scale = 1 / scale, offset = -offset)
}

R implementation for rasters

Let’s import a raster, calculate the scale and offset values and use these values to write to disk

elev <- rast(system.file("ex/elev.tif", package="terra"))

so <- scoff_params(elev)

writeRaster(
  elev,
  "data-out/datatypes/INT1U.tif",
  overwrite = TRUE,
  scale  = so["scale"],
  offset = so["offset"]
  )

R implementation for rasters

• GDAL embeds scale and offset in the file metadata
• On import, any GDAL-based software restores the original values automatically
• The stored INT1U bytes are invisible — you always get back the original range

Lossless Compression

• Even after choosing a compact datatype, files can be compressed further
• Lossless compression reduces file size without changing any pixel values — the original data is perfectly recoverable
• GeoTIFF supports several lossless algorithms via GDAL; DEFLATE is the most widely used

writeRaster(r, "output.tif", gdal = "COMPRESS=DEFLATE")

• Compression is transparent to readers: any GDAL-based software (R, QGIS, Python) decompresses automatically on load

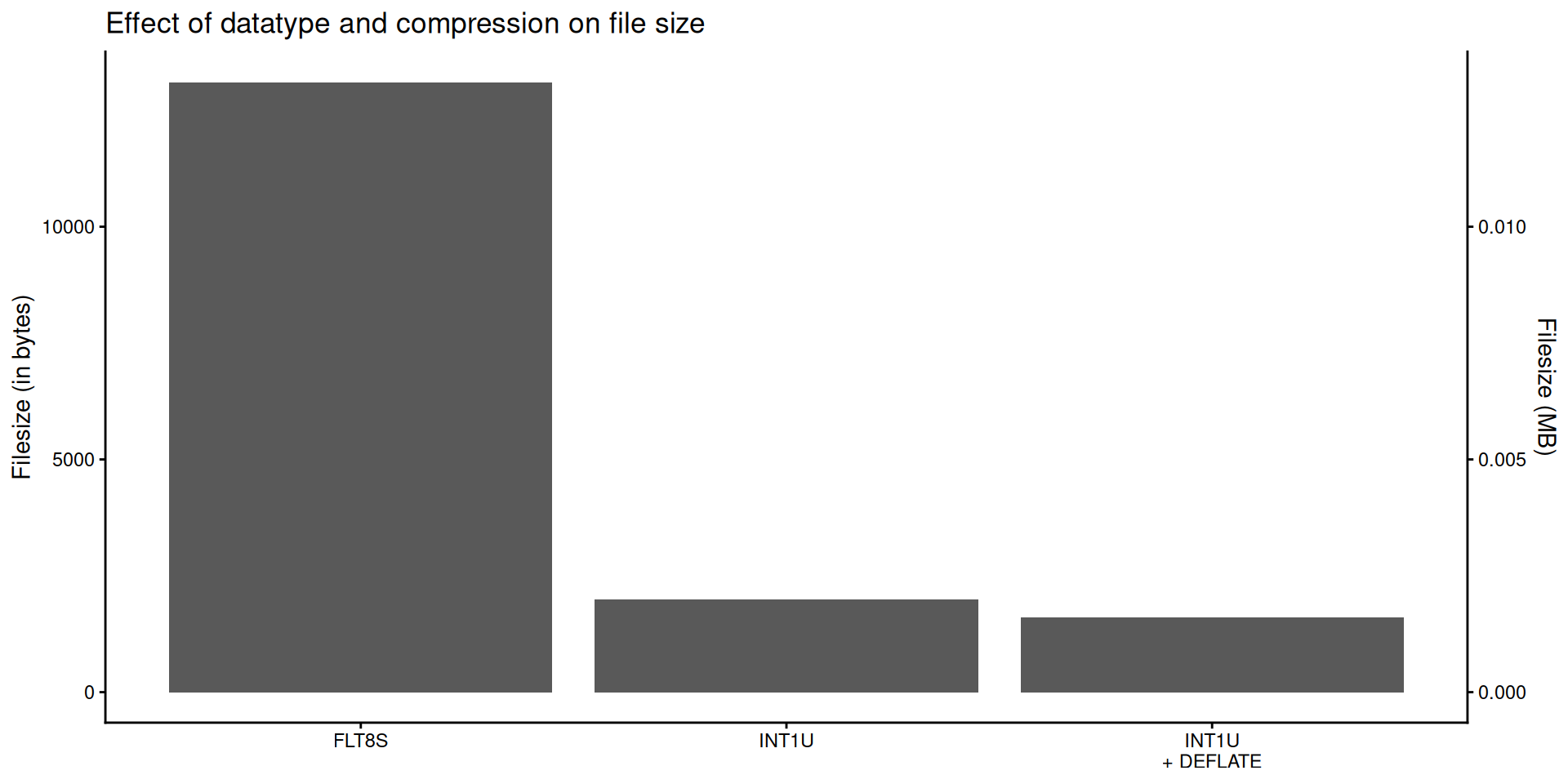

• Combine datatype + compression for maximum savings: INT1U + DEFLATE can be 8× smaller than uncompressed FLT8S

• DEFLATE is identical to the algorithm used in ZIP files — students will have intuition for it
• LZW is an older alternative; ZSTD is newer and faster but less universally supported
• Lossy compression (JPEG) exists for imagery but is rarely appropriate for analysis — pixel values change, which breaks indices and classification
• “Transparent to readers” is the key selling point — no extra steps needed when loading the file

Showcase: Importing Sentinel data

Download data

To download Sentinel data:

1. Go to the Copernicus Browser website
2. Login using your credentials
3. Go to your area of interest
4. Click on the “Search” Tab in the left panel
5. In Data Source, select Sentinel 2 → L2A
6. Choose your desired time frame
7. Click on the “Search” button
8. From the search results, download one or two scenes

Copernicus SAFE Format I

• Downloaded scenes come as a SAFE folder (distributed as .zip)
• Contains image bands as individual JP2 files + metadata in XML
• Key contents:
  • IMG_DATA/ — band images at 10m, 20m, 60m resolution
  • GRANULE/ — scene-level data and annotations
  • manifest.safe — general product info

Copernicus SAFE Format II

The SAFE folder above includes the following content:

                                                                     levelName
1  data-large
2   °--S2B_MSIL2A_20240915T102559_N0511_R108_T32TMS_20240915T131207.SAFE
3       ¦--DATASTRIP
4       ¦   °--DS_2BPS_20240915T131207_S20240915T102803
5       ¦       ¦--MTD_DS.xml
6       ¦       °--QI_DATA
7       ¦           ¦--FORMAT_CORRECTNESS.xml
8       ¦           ¦--GENERAL_QUALITY.xml
9       ¦           ¦--GEOMETRIC_QUALITY.xml
10      ¦           ¦--RADIOMETRIC_QUALITY.xml
11      ¦           °--SENSOR_QUALITY.xml
12      ¦--GRANULE
13      ¦   °--L2A_T32TMS_A039316_20240915T102803
14      ¦       ¦--AUX_DATA
15      ¦       ¦   ¦--AUX_CAMSFO
16      ¦       ¦   °--AUX_ECMWFT
17      ¦       ¦--IMG_DATA
18      ¦       ¦   ¦--R10m
19      ¦       ¦   ¦   ¦--T32TMS_20240915T102559_AOT_10m.jp2
20      ¦       ¦   ¦   ¦--T32TMS_20240915T102559_B02_10m.jp2
21      ¦       ¦   ¦   °--... (etc)
22      ¦       ¦   ¦--R20m
23      ¦       ¦   ¦   ¦--T32TMS_20240915T102559_AOT_20m.jp2
24      ¦       ¦   ¦   ¦--T32TMS_20240915T102559_B01_20m.jp2
25      ¦       ¦   ¦   °--... (etc)
26      ¦       ¦   °--R60m
27      ¦       ¦       ¦--T32TMS_20240915T102559_AOT_60m.jp2
28      ¦       ¦       ¦--T32TMS_20240915T102559_B01_60m.jp2
29      ¦       ¦       °--... (etc)
30      ¦       ¦--MTD_TL.xml
31      ¦       °--QI_DATA
32      ¦           ¦--FORMAT_CORRECTNESS.xml
33      ¦           ¦--GENERAL_QUALITY.xml
34      ¦           ¦--GEOMETRIC_QUALITY.xml
35      ¦           ¦--L2A_QUALITY.xml
36      ¦           ¦--MSK_CLASSI_B00.jp2
37      ¦           ¦--MSK_CLDPRB_20m.jp2
38      ¦           ¦--MSK_CLDPRB_60m.jp2
39      ¦           ¦--MSK_DETFOO_B01.jp2
40      ¦           ¦--MSK_DETFOO_B02.jp2
41      ¦           ¦--... (etc)
42      ¦           ¦--MSK_QUALIT_B01.jp2
43      ¦           ¦--MSK_QUALIT_B02.jp2
44      ¦           ¦--MSK_SNWPRB_20m.jp2
45      ¦           ¦--MSK_SNWPRB_60m.jp2
46      ¦           ¦--SENSOR_QUALITY.xml
47      ¦           °--T32TMS_20240915T102559_PVI.jp2
48      ¦--HTML
49      ¦   ¦--banner_1.png
50      ¦   ¦--banner_2.png
51      ¦   ¦--banner_3.png
52      ¦   ¦--star_bg.jpg
53      ¦   ¦--UserProduct_index.html
54      ¦   °--UserProduct_index.xsl
55      ¦--INSPIRE.xml
56      ¦--manifest.safe
57      ¦--MTD_MSIL2A.xml
58      ¦--rep_info
59      ¦   ¦--S2_PDI_Level-2A_Datastrip_Metadata.xsd
60      ¦   ¦--S2_PDI_Level-2A_Tile_Metadata.xsd
61      ¦   °--S2_User_Product_Level-2A_Metadata.xsd
62      °--S2B_MSIL2A_20240915T102559_N0511_R108_T32TMS_20240915T131207-ql.jpg

The bands are in IMG_DATA/ — one JP2 per band, at 10m, 20m, and 60m.

s2_files <- list.files("data-large/S2B_MSIL2A_20240915T102559_N0511_R108_T32TMS_20240915T131207.SAFE/GRANULE/L2A_T32TMS_A039316_20240915T102803/IMG_DATA/R60m/", "\\.jp2$", full.names = TRUE)

• Filter to spectral bands only (B01–B12)
• Extract band names from filenames with str_split_fixed()

# selecting only the bands we are interested in:
s2_files <- s2_files[str_detect(s2_files, "B\\d{2}")]

s2 <- rast(s2_files)

# Extracting the band names from the file names and adding these
names(s2) <- str_split_fixed(names(s2), "_",4)[,3]

names(s2)

 [1] "B01" "B02" "B03" "B04" "B05" "B06" "B07" "B09" "B11" "B12"

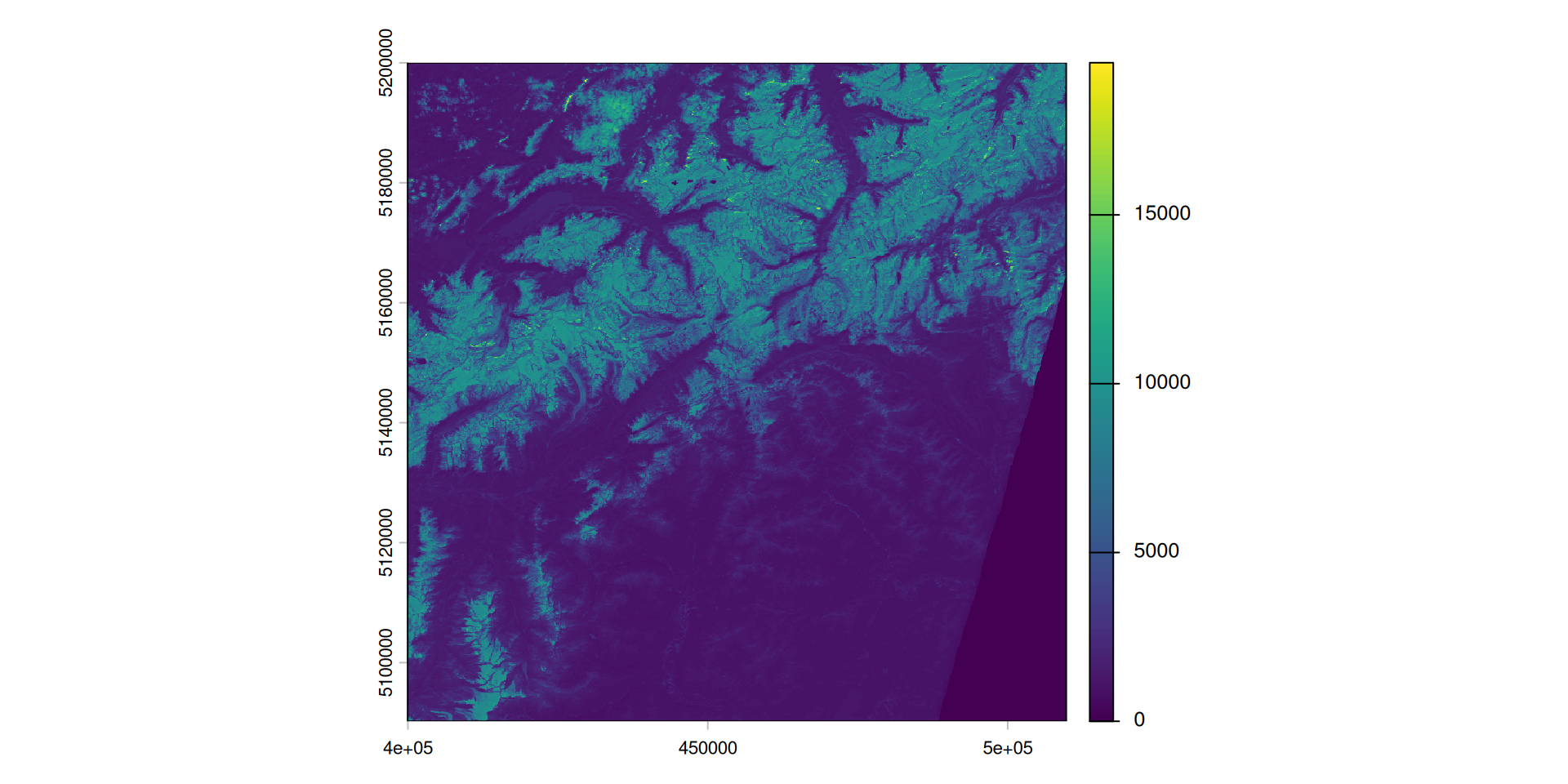

• Test if the data is loaded correctly:

plot(s2[[1]])

• Values range 0–15000 → not yet reflectance (see Section 2)
• GDAL hasn’t applied scale/offset automatically → we must do it manually
• The conversion formula is documented in MTD_MSIL2A.xml:

\[DN = \rho \times Q - O\]

where \(Q\) = quantification value and \(O\) = radiometric add offset — let’s extract them:

Searching for QUANTIFICATION_VALUE in SAFE/MTD_MSIL2A.xml:

            <QUANTIFICATION_VALUES_LIST>
                <BOA_QUANTIFICATION_VALUE unit="none">10000</BOA_QUANTIFICATION_VALUE>
                <AOT_QUANTIFICATION_VALUE unit="none">1000.0</AOT_QUANTIFICATION_VALUE>
                <WVP_QUANTIFICATION_VALUE unit="cm">1000.0</WVP_QUANTIFICATION_VALUE>
            </QUANTIFICATION_VALUES_LIST>

Searching for ADD_OFFSET in SAFE/MTD_MSIL2A.xml:

            <BOA_ADD_OFFSET_VALUES_LIST>
        <BOA_ADD_OFFSET band_id="0">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="1">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="2">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="3">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="4">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="5">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="6">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="7">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="8">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="9">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="10">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="11">-1000</BOA_ADD_OFFSET>
        <BOA_ADD_OFFSET band_id="12">-1000</BOA_ADD_OFFSET>
      </BOA_ADD_OFFSET_VALUES_LIST>

• \(Q\) = 10’000, \(O\) = −1’000 → \(\rho = (DN - 1000) / 10000\)
• But are the resulting values physically plausible?

s2b <- (s2 - 1000)/10000

minmax(s2b)

        B01    B02     B03     B04     B05     B06    B07    B09     B11
min -0.1000 -0.100 -0.1000 -0.1000 -0.1000 -0.1000 -0.100 -0.100 -0.1000
max  1.8709  1.802  1.7195  1.6616  1.6448  1.6102  1.594  1.573  1.5258
        B12
min -0.1000
max  1.5155

Out-of-range reflectance values

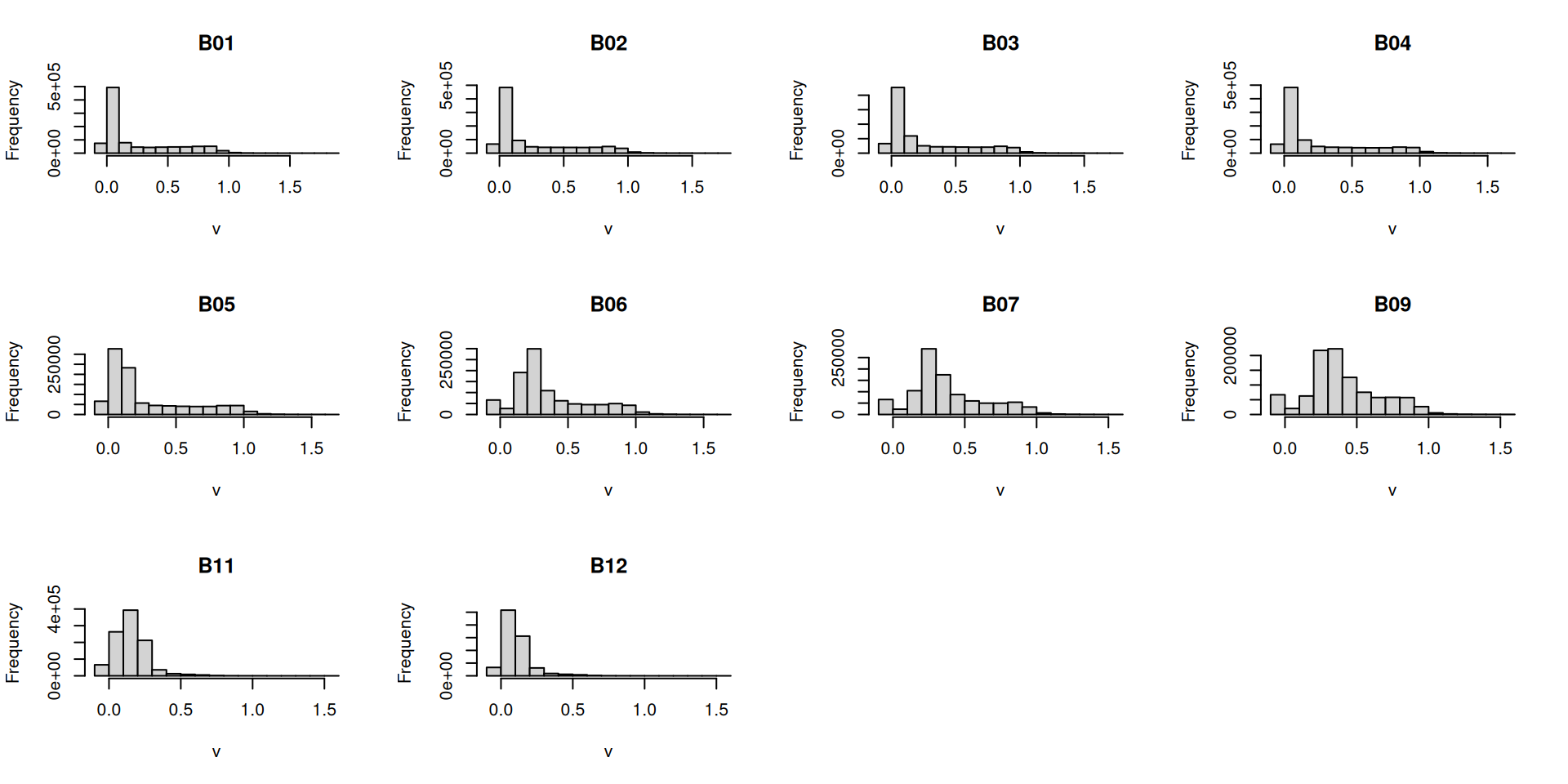

hist(s2b)

• Reflectance is bounded by definition: 0 (no reflection) to 1 (perfect reflection)
• Yet the histogram shows values both below 0 and above 1

Why are values out of range?

• Below 0 — ESA intentionally introduced a −1000 DN offset (processing baseline 04.00)
  • Dark surfaces (deep water, shadows) can have slightly negative reflectance after atmospheric correction
  • The offset shifts all DNs up to keep them positive on disk; subtracting it back out exposes those negatives
  • These values are physically meaningful — clipping them to 0 alters real data
• Above 1 — clouds and saturated pixels exceed the calibration reference; these are true artefacts
• The proper fix for both is SCL masking: clouds (8, 9), shadows (3), and water (6) are flagged and excluded
• After masking, residual out-of-range values are rare; clipping is then a safe fallback

plotRGB(s2b, r = 4, g = 3, b = 2, stretch = "histogram", smooth = FALSE)

# To export the R,G,B bands to a True Color Geotiff:
writeRaster(s2b[[c(4,3,2)]], "data-out/sentinel-rgb.tif", overwrite = TRUE)

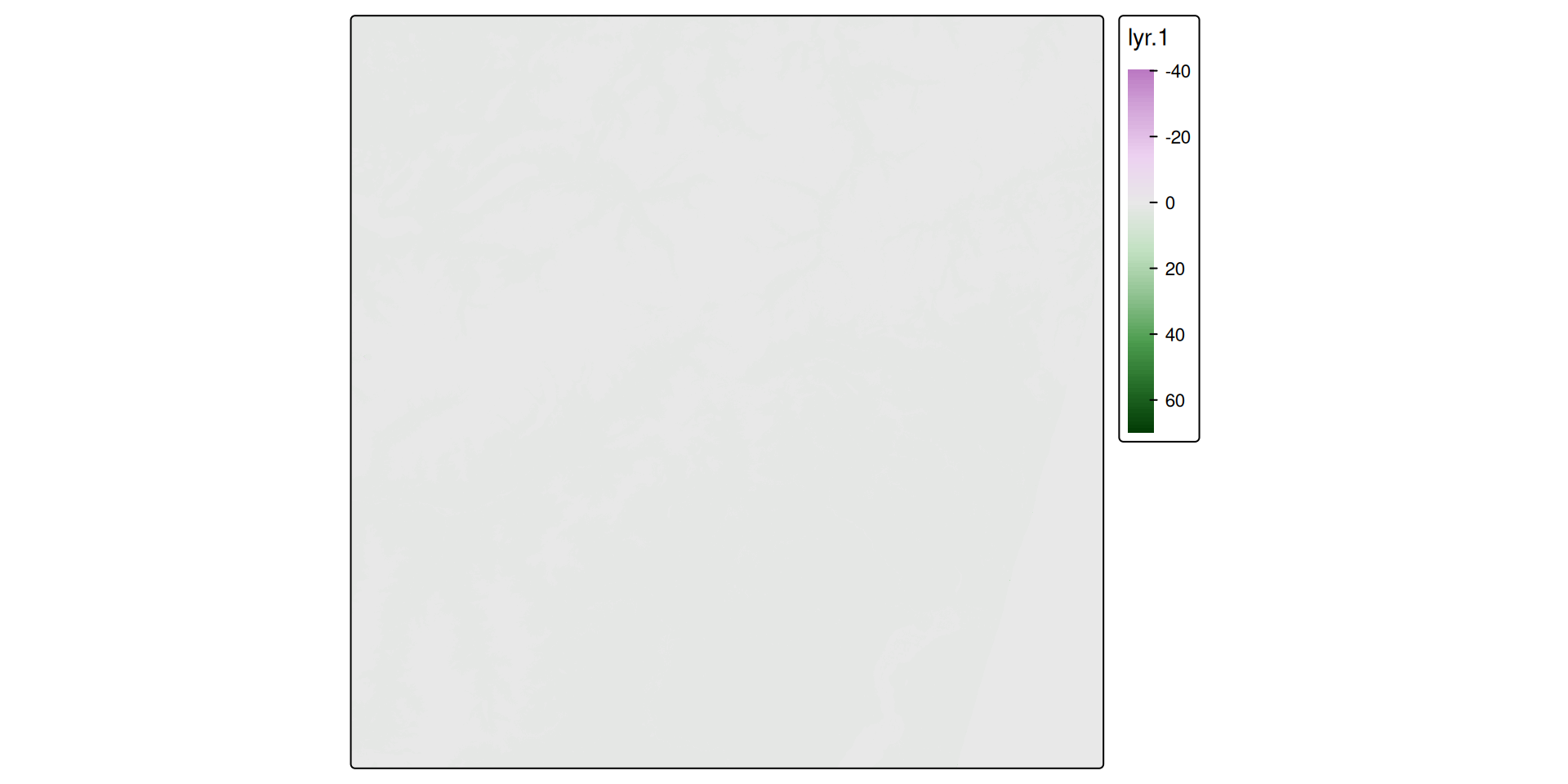

To calculate NDVI, we can create our custom function and apply it to the s2b object using app:

ndvi <- \(x){(x[5]-x[4])/(x[5]+x[4])}

s2_ndvi <- app(s2b, ndvi)
s2_ndvi[!is.finite(s2_ndvi)] <- NA

tm_shape(s2_ndvi) +
  tm_raster(style = "cont",midpoint = 0) +
  tm_layout(legend.outside = TRUE)

Cloud Masking with the SCL Band

Why clouds are a problem

• Clouds reflect strongly across all bands — a cloudy pixel does not represent the surface below
• Using cloudy pixels in analysis (e.g. NDVI, classification) introduces severe errors
• Sentinel-2 L2A includes a Scene Classification Layer (SCL) → per-pixel quality flag generated automatically during atmospheric correction

• Unlike thin haze, which affects values subtly, clouds completely obscure the surface — affected pixels must be excluded, not corrected
• The SCL is generated by Sen2Cor (ESA’s atmospheric correction processor) using spectral rules and auxiliary data
• It is not perfect — thin cirrus and cloud shadows in complex terrain can be misclassified — but it is the standard starting point

The Scene Classification Layer (SCL)

Value	Class	Keep?
0	No Data	✗
1	Saturated / Defective	✗
2	Dark Area Pixels	✗
3	Cloud Shadows	✗
4	Vegetation	✓
5	Bare Soils	✓
6	Water	✓
7	Unclassified	~
8	Cloud, Medium Probability	✗
9	Cloud, High Probability	✗
10	Thin Cirrus	✗
11	Snow or Ice	✓

• Class 7 (Unclassified) is ambiguous — in practice, many workflows discard it to be safe, others keep it
• Classes 8 and 9 are the main cloud mask; class 3 (shadow) is equally important and often missed by users
• Class 2 (dark area) catches topographic shadows in mountainous terrain — relevant in Swiss scenes

Importing the SCL band

• The SCL band is stored as a separate JP2 file in the R20m resolution folder (not R10m)
• It follows the same naming convention as the spectral bands

• The SCL is only available at 20m and 60m resolution — it must be resampled to match the resolution of the band stack you are masking
• resample(scl, s2b, method = "near") aligns it to the target grid — nearest-neighbour is correct here because SCL is categorical

Applying the cloud mask

# define which SCL classes are valid (cloud-free surface)
valid_classes <- c(4, 5, 6, 11)

# create a binary mask: TRUE where pixel is valid
cloud_mask <- scl %in% valid_classes

# apply to the reflectance stack
s2_masked <- mask(s2b, cloud_mask, maskvalues = FALSE)

# clip residual out-of-range values after masking
force_minmax <- \(x, min = 0, max = 1){ x[x < min] <- min; x[x > max] <- max; x }
s2_masked <- app(s2_masked, force_minmax)

• %in% tests membership cell-by-cell and returns a Boolean raster
• mask(..., maskvalues = FALSE) sets cells to NA wherever the mask is FALSE (i.e. cloudy)

• Remind students that mask() was introduced in Lesson 1 — this is the same function, now applied for a real purpose
• The result is a SpatRaster with the same bands as before but NA for all cloudy/shadowed pixels
• Depending on cloud cover, this may remove a large portion of the image — this is expected, not an error

Before and after masking

Before masking: full scene (RGB)

After masking: clouds and shadows set to NA

How much of the image is usable?

# count valid (non-NA) pixels in band 1 as a fraction of total pixels
n_total <- ncell(s2_masked)
n_valid <- global(!is.na(s2_masked[[1]]), sum)[[1]]

cat(sprintf("Valid pixels: %.1f%%\n", 100 * n_valid / n_total))

Valid pixels: 74.6%

• If usable coverage is low, consider:
  • Choosing a different date with less cloud cover
  • Mosaicking multiple acquisitions from nearby dates
  • Seasonal compositing: combine all cloud-free pixels from a season into one image

• A common rule of thumb: discard scenes with > 20% cloud cover over your study area
• But study area cloud cover matters more than full scene cloud cover — a scene can be 80% cloudy globally but cloud-free over your area of interest
• Seasonal composites (e.g. median of all July scenes) are very robust and widely used in land cover mapping

References

Amatulli, Giuseppe. Geocomputation and Machine Learning for Environmental Applications. Http://spatial-ecology.net/docs/build/html/GDAL/gdal_osgeo.html.
